 Yacht-Houseboat OTRADA

Project ST24HB

Conceptual & detailed design


plan of OTRADA Yacht

design

deck plans

characteristics

specification

model

photo from yard

photo of details

interiors photo

final photo





'Otrada' catamaran is a houseboat of improved comfort, in other words: a river-going yacht.

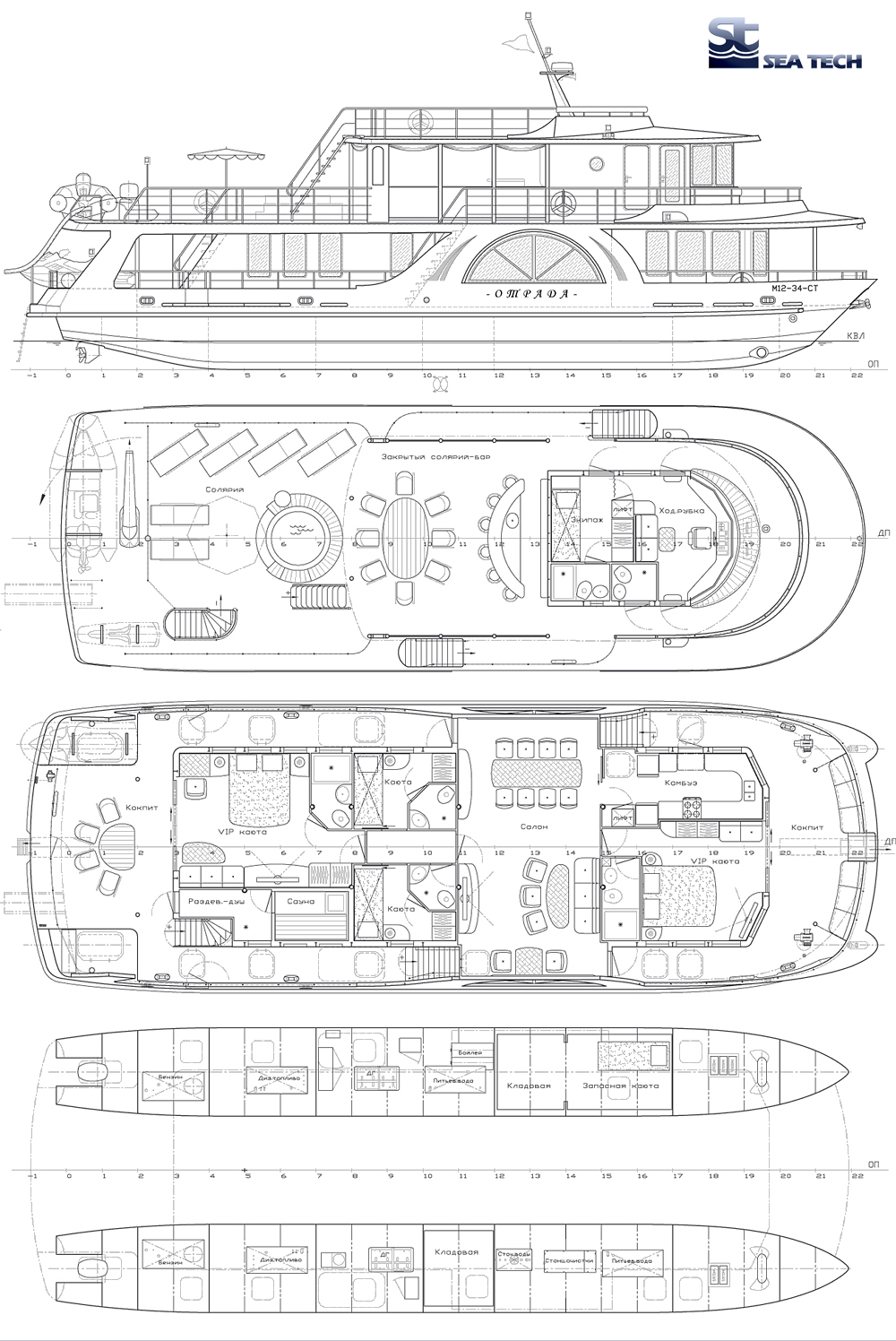

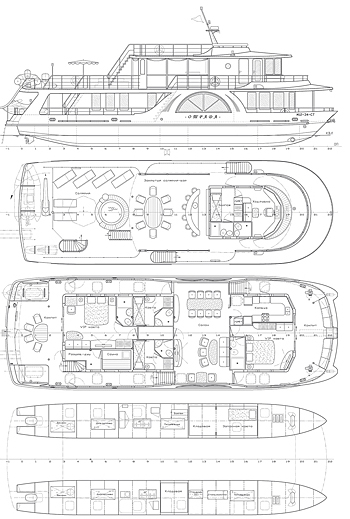

General Arrangement

Deckhouse: The fore part accommodates a galley at PS and a VIP cabin at SB, both of them having entries to the lounge and the weather deck. The entire-width lounge with large round-headed windows is arranged amidships. The lounge has a dining area and a leisure area and two exits: to SB and PS. A small corridor leads to the aft living spaces: two guest cabins and the aft VIP cabin, the latter having a passage to the aft cockpit. A sauna is arranged in the deckhouse SB aft part.

Arranged at the deckhouse top are the wheelhouse, a crew cabin, a summer bar (a porch with rolling shutters at sides), sun lounge with a pool, and a flybridge davit. Space is provided for a RIB boat, a jet ski and a plastic slippery chute (as option).

The hulls are used for accommodation of vessel's equipment and extra (3rd and 4th) crew members or as additional store rooms.

The basic design configuration enables to construct yachts of various space layouts. Many layout versions were investigated both for this particular project and for its modifications.
