Length overall, m

24,0

Length of the hull, m

23,5

Breadth overall, m

6,7

Breadth of the hull, m

6,2

Depth (midship), m

3,34

Overall height up to nonremovable parts, m

8,4

Draught (load), m

1,71

Engine power (Baudouin 12M26), kW

2х883

Speed, kn

~19

Endurance, days

5

Range by fuel, ml

300

Crew /Special staff, pers.

2/12

Material of hull /superstructure

Steel /ALU

Fuel tanks, m³

7,0+1,2

Drinking water, m³

0,85

Sewage water, m³

1,3+2,4

Class RS

КМR3 AUT3 HSC

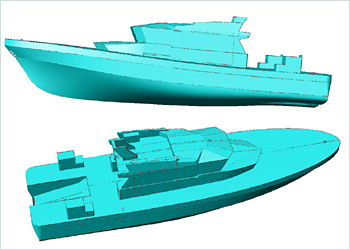

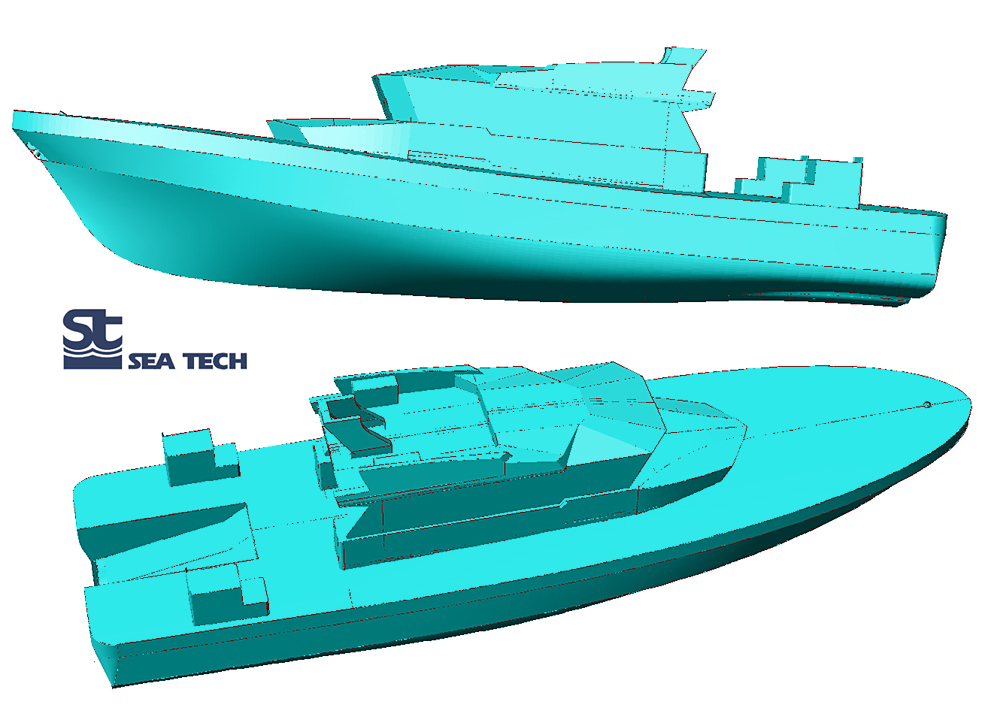

The mathematical model of a ship surface is developed

in Sea Solution System
