Судостроительная компания Си Тех

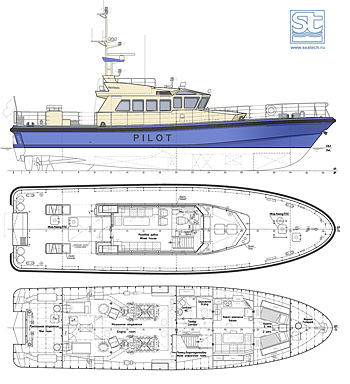

Pilot boat 24m

Project  23170

Classification project


Pilot boat 24m

23170

23171

23172

















Project:

23170

Basic project:

ST23WI

Ship type:

speedboat

Functions:

pilot-boat, boat for security and monitoring, search and rescue,  general service launch

Classification project:

Sea Tech Ltd.,  2015



Length overall, m

24,0

Length of the hull, m

23,5

Breadth overall, m

6,7

Breadth of the hull, m

6,2

Depth (midship), m

3,34

Overall height up to nonremovable parts, m

8,4

Draught (load), m

1,74

Engine power (Baudouin 12M26), kW

2х883

Speed, kn

~18

Endurance, days

5

Range by fuel, ml

300

Crew /Special staff, pers.

2/12

Material of hull /superstructure

Steel /ALU

Fuel tanks, m³

7,0+1,2

Drinking water, m³

0,85

Sewage water, m³

1,3+2,4

Class RS                                                          КМkmIce2 R3 AUT3 HSC

Pilot boat 24m

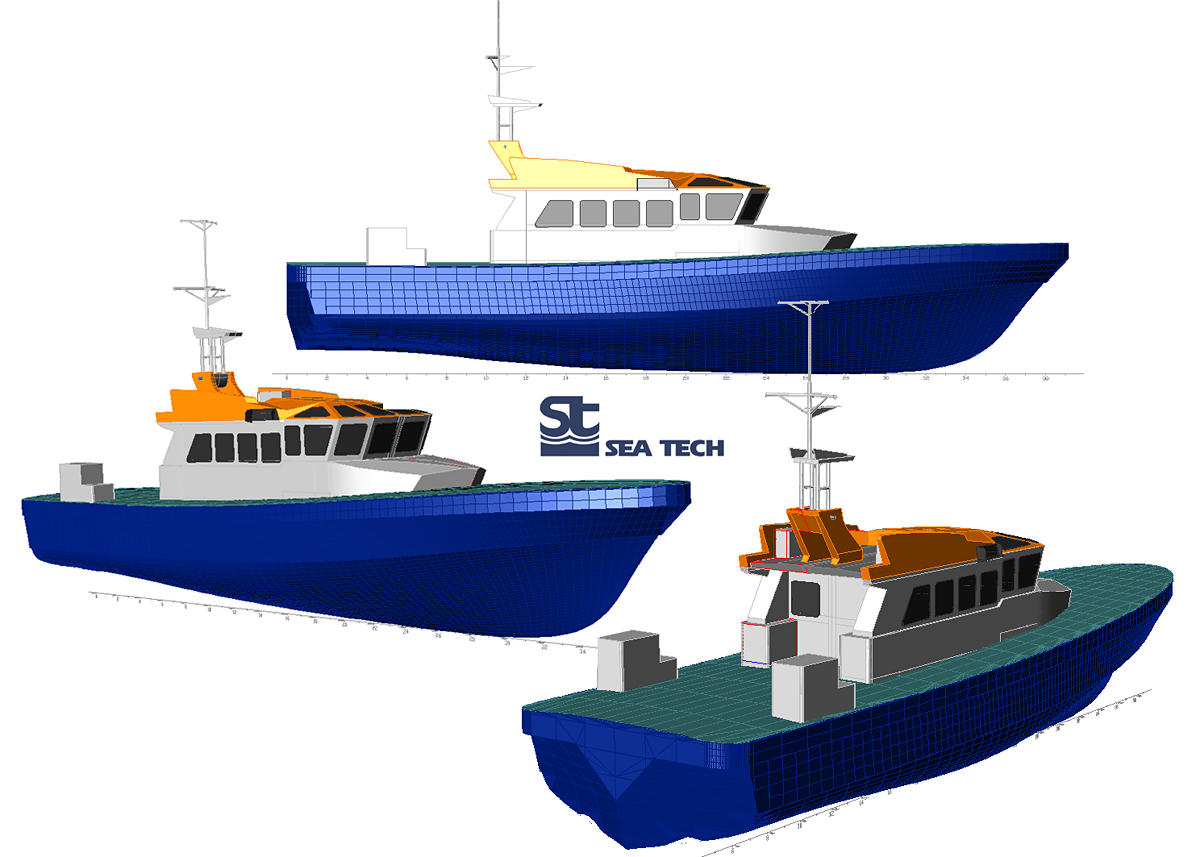

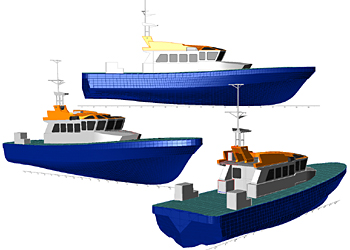

The mathematical model of a ship surface is developed

in Sea Solution System
