Lofting

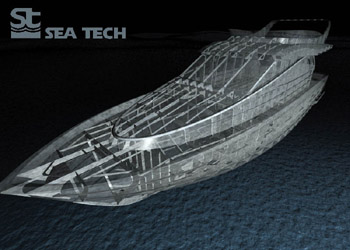

Lofting: 3d Solid modeling the parts of ship's inner framing, pipelines, cables according to classification project

Lofting

  • Tracing the butts, joints and ship framing

  • Forming the shell plates

  • Checking the details of shell plates for fitting the manufactured steel plates

  • Modifying the joints position with automatic changing the shell plates profiles

  • Modifying the shell plates parameters (thickness, material type, etc.)

  •  Automatic creation the slots for shell parts

  • Generating the shell parts in DXF format and in the other formats for AUTOKON, FORAN, ARGO systems

  • Generating the documentation for bending molds

  • Forming the isometric view of the shell with traced shell lines

  • Forming the isometric view of the section with plates dimensions, their quantity, weight and coordinates of the center of gravity

  • Generating the isometric view of shell plating expansion

  • Forming the inner ship's framing

  • Generating the documentation of profiles and bended parts

  • Generating the isometric view of assembled block with traced parts positions
