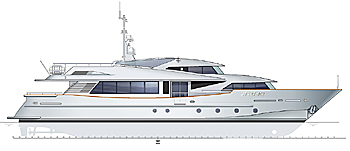

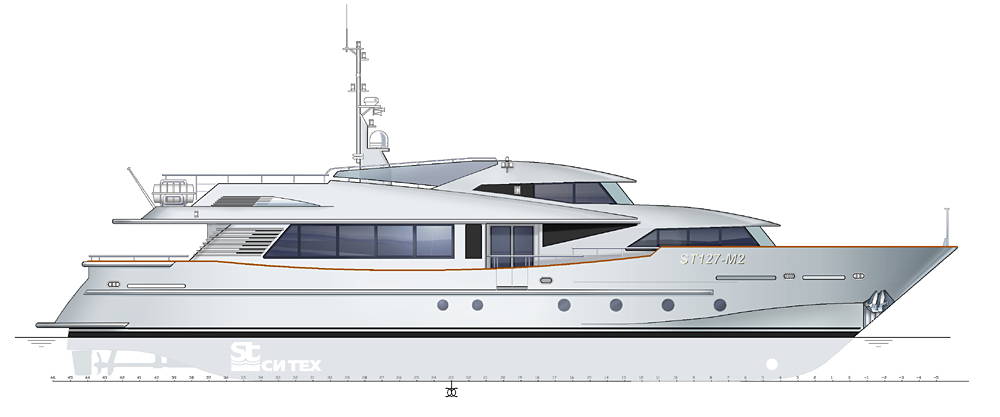

This river motor yacht project is a luxury day passenger vessel
designed for hosting business meetings, private celebrations, and
banquets.
The vessel features a steel hull with an aluminum superstructure,
engineered on the proven platform of the seaworthy
PC870
hull (designed by Sea Tech in 2001). To comply with the strict air
draft restrictions specified in the technical requirements, the
wheelhouse is semi-recessed into the superstructure. The interior
layout offers highly flexible configurations, easily adaptable to
the vessel's intended purpose and the owner's individual preferences.
According to the primary layout option developed by the studio, the
superstructure accommodates a forward observation lounge (a small
banquet area for 8–10 guests) and an aft banquet hall seating up to
15 people, complete with a serving pantry. The lower deck (hold) is
divided into three functional zones: the master cabin is situated
forward; the crew quarters, including cabins and a galley with a
dumbwaiter (galley lift), occupy the midship section; and the engine
room is located aft.
Designed by the Sea Tech Design Studio, 2010.
|
|
Length overall
Length on DWL
Beam overall
Depth
Height above the water with folded
mast
Draft
Displacement
Passenger capacity
Passenger sleeping places
Crew
Engine power
Speed
Material оf hull /superstructure
Russian River Register class |
29.3 m
24.9 m
6.5 m
2.9 m
5.7
m
1.4 m
~100 t
28
2
4
2х486 hp
~11 kn
Steel/AMg
О 2.0 |
|
|
|
