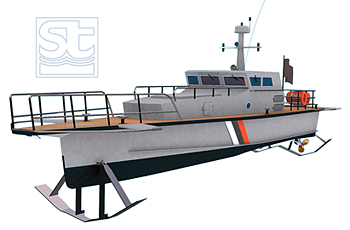

Fast patrol boat SEA SPEAR

based on hydrofoil IGLA

Concept


Fast patrol boat SEA SPEAR























Project

Patrol boat

Basis hull

Hydrofoil IGLA

New exterior design

Sea Tech



Speed was always a major requirement for naval and coast-guard patrol boats. In recent years, modern Fast Patrol Boats were introduced with cruising capability beyond 50 knots, utilizing various propulsion methods including gas-turbines powered water-jets, hydrofoils and combined catamaran-air-cushion designs. Patented hydrofoil system.

Seaworthiness, speed, lightweight aluminum construction, engine powering with economical operating characteristics, reliable service and substantially reduced operating costs. The Sea Spear is dedicated to specialized patrol needs, incorporating the following: coast guard, navy patrol, customs, search and rescue, fisheries protection.



Length, m

16,4

Beam, m

3,6

Floating draught, m (foils up)

0,67

Foilborne draught, m

0,30

Displacement, t

10,5

Power, h.p.

2750

Cruising speed, knots

50

Maximum speed, knots

65

Maximum wave height, m

2,0

Wave height at foilborne, m

0,75

Crew, persons

1

Range, miles

250
