Судостроительная компания Си Тех







Sea catamaran 135 PAX

Project  HSC150M

Concept


Hydrofoil catamaran 150 pax





















hsc150

hsc150

hsc150

hsc150

hsc150

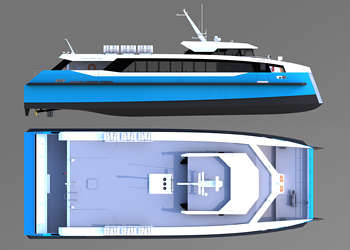

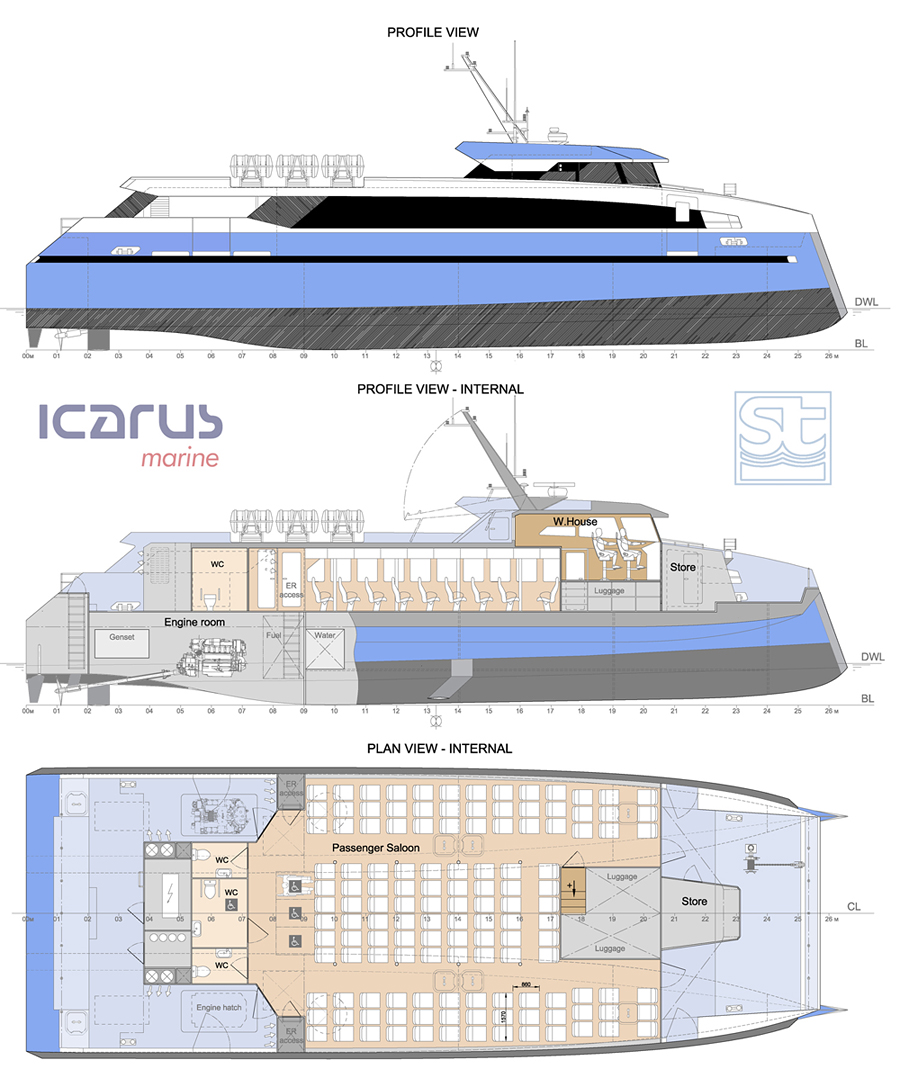

We present the HSC150M Project - a concept for a high-speed sea catamaran with dynamic hydrofoil unloading.

The hull has a well-proven design that ensures high efficiency in calm water and excellent comfort for passengers on the wave.

The hull structure compliant with BV rules for high speed craft.



Length overall, m

26,6

Breadth (molded), m

9,2

Depth (molded), m

3,0

Design Draft (full load), m

1,4

Displacement (full load), t

80

Engine power, kW

2x900

Max speed, kn

33

Cruising speed, kn

30

Crew

3

Passenger capacity

135

Material

aluminum alloy

RS class

КМ km [2] MHC HSC Passenger



A catamaran with a hydrofoil system located within the dimensions of the vessel, compared to a planing vessel with the same speed, consumes 40% less fuel and carries 8% more payload. Compared to a traditional hydrofoil with stationary hydrofoils, such a vessel can be operated at shallower depths, is less dependent on overload, has a lower cost, freedom in the choice of propulsion, a relative simplicity of the design of the hydrofoil system, and the situation of failure to reach the wing is excluded.
